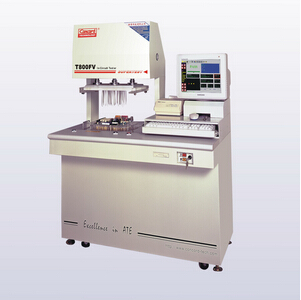

1. Overall structure: monolithic
2. Size: 1150 (L) X 1510 (H) X 710 (W) mm
3. Channel board: high-speed reed relay
4. Maximum test channels: 2048 points
5. The operating system: Windows 2000 or above
6. Software: Very easy to use user-friendly
interface
7. Test Stability:
8. open / short test speed: 2ms
9. Resistance Test Speed: 2.0ms
10. Capacitance Test Speed: 8.0ms
11. Inductance test speed: 12ms
12. Test Accuracy: high-precision test 64K
Resolution
13. The failure component is display
14. Automatic stamp function: Optional
15. The electrolytic capacitor Mating tests
16. HP TESTJET technology: Optional
17. Low noise level
18. Green Energy: energy-saving
19. Power up functional test: to provide power for
the functional testing, also can be connected to external equipment, signal
source, oscilloscope to fulfill completed test.
20. LED vision detection: AVI test module, external
camera to distinguish colors from luminous parts.
Standard features:
Comprehensive testing capabilities
Automatic learning, optimization and adjustment of
test methods
Automatic grading
IC missing and orientation detection
Displays top ten failure components
Repeat the test
Pin number search function
Self-diagnosis function
Accurately measure small capacitance by offset system
capacitance
Daily or cumulative test results
Charging source to improve test speed
Special Testing Features:

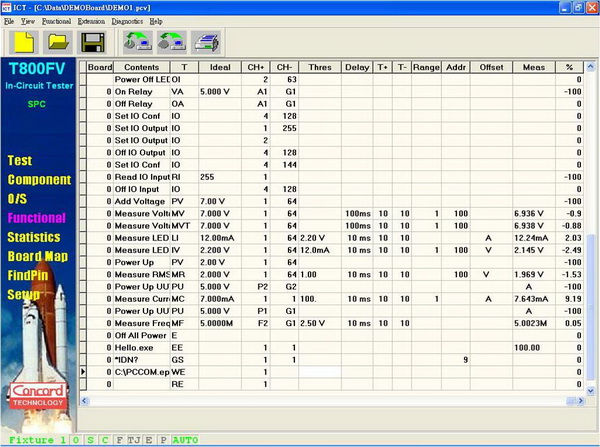

Capability of external camera connection With visual functional test board that can distinguish color by vision test
Functional Test Module:
Applies power to PCB and check signals. It can also connect to external signal source, instruments and oscilloscope for further critical performance test
Full testing features:
Auto learn with measurement/test methodology optimization
Auto guarding
Missing IC and orientation check IC
Ten highest component failure display
Loop test
Pin number search function
Self diagnostic function
Provides daily or accoumulated
A fixed voltage generator offers a fast method of charging the
capacitors and saves time during testing
Software Features:
Super debug mode
Permits fast trouble shooting, Programmable options include driving current, delay time and resting frequency
Easy to program:
Programming is easily accomplished through Auto Learn, step testing and individual edting.
Tolerances can be globally edited, guarding, skip or waiting time are edited individually.
ardware Features:
Reliable measurement
Direct Digital Synthesis (DDS)generates low-distortion test waveform with high frequency stability. Proprietary advanced digital filtering technology (DFT) provides an excellent signal-to-noise ratio for stable measurement.
Accurate
16 bit digital-to-analog and analog-to-digital converter offers 64K resolution for accurate measurements.
